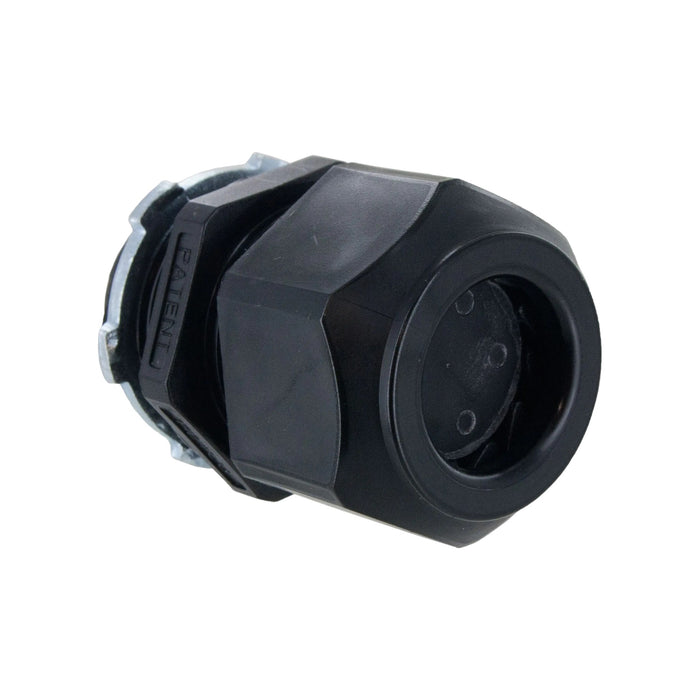

Name: Heyco M3234GBR-SM 3/4" Cordgrip 5 Hole
Brand: Heyco
SKU: M3234GBR-SM
Price: 6.86 USD
Availability: InStock

Heyco M3234GBR-SM 3/4" Cordgrip 5 Hole

by Heyco

Availability:

In stock

$6.86 - $6.86

$6.86

$6.86 - $6.86

$6.86

Break-Thru™ Skinned-Over glands in the Solar Masthead II Cordgrips offer flexibility to use from 1 to 31 of the available holes while still providing a liquid-tight seal around the wire.
IP68 rated.
Approved for NEMA 4, 4X, 6, and 6P.
Compatible with a wide range of cables, including popular sizes like #6 AWG, #8 AWG, #10 AWG, and #12 AWG.
Integral Sealing Ring ensures a superior seal at the clearance or threaded mounting hole location, every time.
Provides a watertight seal for PV module output leads.
UV-resistant nylon construction with TPE sealing gland resists saltwater, weak acids, gasoline, alcohol, oil, grease, and common solvents.
No disassembly is required for installation.

Quantity

Technical Specifications

Product Name: Heyco M3234GBR-SM 3/4" Cordgrip
Part Number: M3234GBR-SM
Thread Size: 3/4" NPT
Color: Black
Material: UV-resistant nylon body with TPE skinned-over gland
Ingress Protection Rating: IP68 (dust-tight and waterproof)
NEMA Rating: Approved for NEMA 4, 4X, 6, and 6P applications
Hole Configuration: Skinned-over design allows for flexible usage of 1 to 31 holes while maintaining liquid-tight sealing
Cable Compatibility: Suitable for a wide range of cables, including #6 AWG, #8 AWG, #10 AWG, and #12 AWG
Resistance: Resistant to saltwater, weak acids, gasoline, alcohol, oil, grease, and common solvents
Sealing Features: Integral sealing ring for superior seal in clearance or threaded mounting holes
Quantity per Package: 1 piece

Product Sheet
