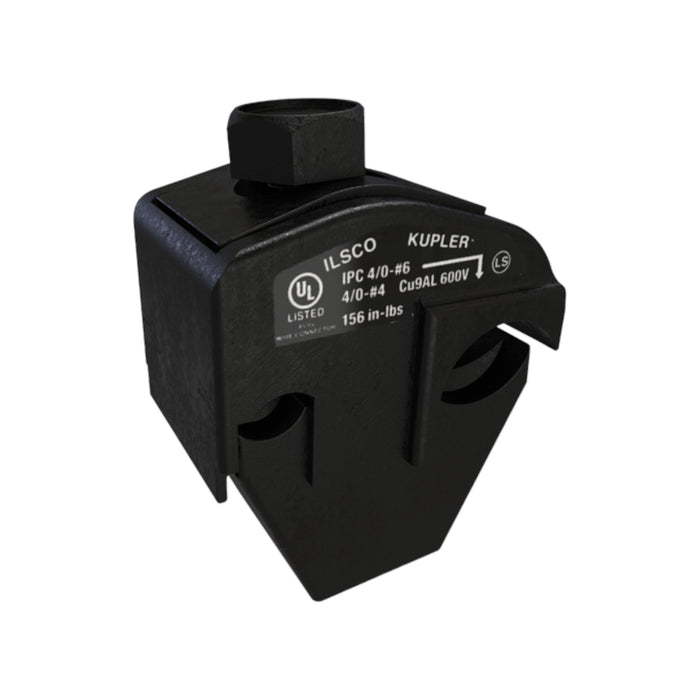

Ilsco Piercing Connector

• Body is Molded from Tough, Resilient Glass-Filled Nylon Provides High Degree of Breakage Resistance and Long Dependable Use
• Compact Design Saves Space
• Tin Plated Copper Contact Teeth Easily Penetrates Most Types of Insulation
• Insulation Piercing-No Need to Strip the Conductor Which Saves Installation Time
• Perforated End Tabs Break Out Easily by Hand
• Pre-Filled with Silicone Lubricant Prevents Oxidation and Moisture from Entering the Contact Area
• Horizontal Line Grid Provides a Visual Guide for Proper Installation of Conductors

• Approval: UL 486A/B, UL 923F, CSA
• Brand Name: KUP-L-Tap, Series IPC
• Commodity Code: 4541
• Connection Type: Splice, Tap
• Families: Cable Connectors
• Price Class MAP: 26.77
• Product Origin: TEAMKE
• Quantity Unit of Measure (UM): EA
• Sell Pack Quantity: 1
• Standard Package: 12
• Temperature Rating: 90°C
• UN-SPSC: 39121408
• Voltage Rating: 600 V
• Wire Size: 4 to 4/0 AWG (Main), 14 to 6 AWG (Tap)
• Wire Type: Copper/Aluminum
