Renogy MC4 Connectors

Name: Renogy MC4 Connectors
Brand: Renogy
SKU: RNG-CNCT-MC4-BC
Price: 3.99 USD
Availability: InStock

by Renogy

SKU RNG-CNCT-MC4-BC

Availability:

In stock

$3.99 - $3.99

$3.99

$3.99 - $3.99

$3.99

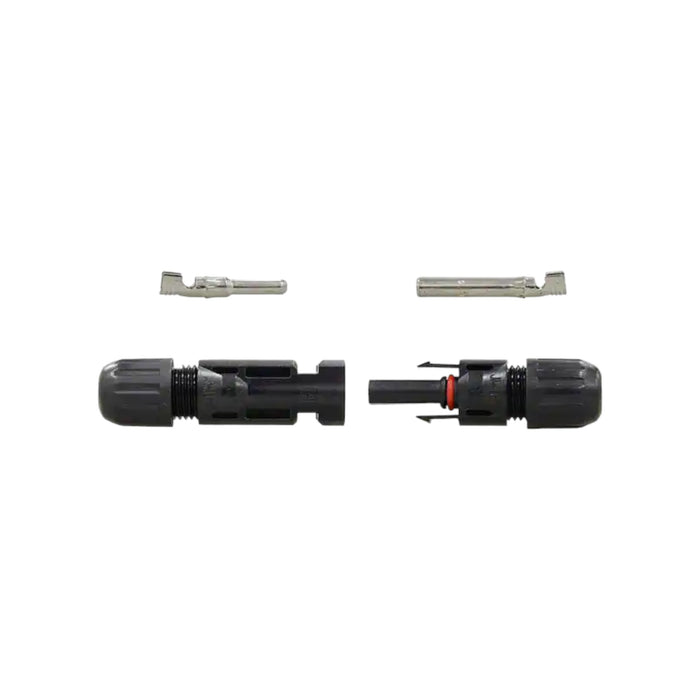

MC4 Male/Female Solar Panel Cable Connector is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and exposure to extreme weather conditions, making it ideal for permanent installations.

Renogy Solar Cable Connectors are made with the highest quality materials. They are both heavier and sturdier than many other brands, ensuring long-term reliability and performance.

The connectors are designed to complete a solar panel (PV) array, typically for parallel applications. They are also waterproof and resistant to dust build-up.

Key Features

Easy Installation: The Solar panel connectors are designed for quick and straightforward installation, reducing installation time and effort. With a snap-in design, a secure connection is ensured without specialized tools.
High Durability: This MC4 solar connector is made from high-quality materials to withstand harsh environmental conditions, including UV exposure, moisture, and extreme temperatures. The result is long-term reliability and performance.
Excellent Conductivity: The RV solar connector provides low-resistance connections that enhance your solar power system's efficiency.
Versatile Compatibility: Suitable for a wide range of solar panels and cables, these solar MC4 connectors are versatile choices for solar installation projects.

Technical Specifications

Manufacturer: RENOGY
Catalog Number: RNG-CNCT-MC4-BC
Contact Resistance: ≤ 0.4 mΩ
Rated Voltage: 1000 V DC (IEC) / 600 V DC (UL)
Rated Current: 30 A (4 mm²), 50 A (6 mm²)
Insulation Material: PPO
Contact Material: Copper, silver plated
Degree of Protection: IP67
Temperature Range: -40°F to +194°F

Product Sheet

Renogy MC4 Connector(s)
