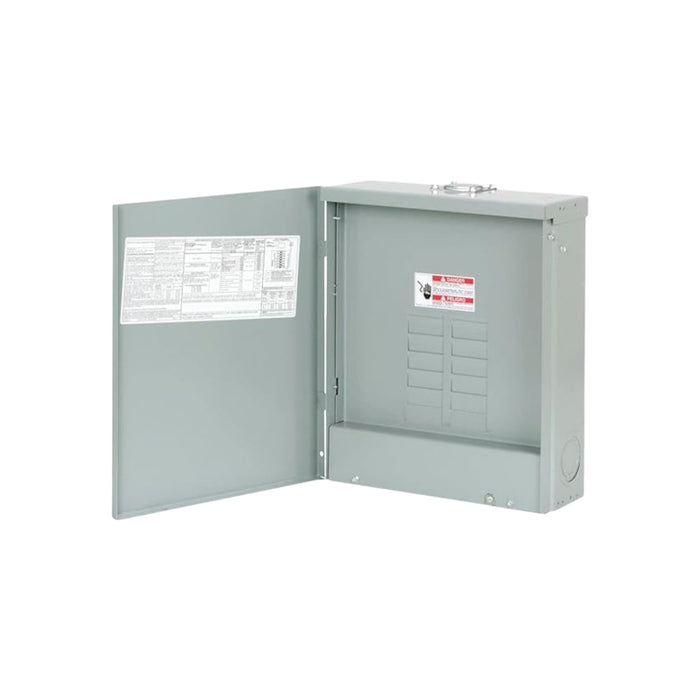

Eaton BRP12L125R 1-Phase 3-Wire Plug-On Neutral Main Lug Load Center 12 Spaces

• Amperage rating: 125 Amp
• Cover: cover included
• Enclosure: NEMA 3R
• Bus material: aluminum
• Used with: type BR 1 in. breakers
• BR type plug-on neutral breaker box eliminates the pigtail connection providing time and labor savings
• Dedicated neutral bus for breaker connection
• In-board neutral bar increases gutter space to allow for professional installation of conductors
• Backed out neutral screws allows for quick connection of neutral and ground conductors
• Optimized knockout locations for additional access and easier to remove
• Self-leveling tabs allow for quick drywall offset and helps simplify installation
• Keyhole hanging feature allows for ease of cover installation for both top and bottom feed applications
• Rigid cover spine provides strength when twist outs are removed allowing for easier removal

Dimensions:

• Depth: 18 in
• Height: 6 in
• Width: 15.5 in

Details:

• Breaker Box Type: Subpanel
• Connection Type: Neutral
• Indoor/Outdoor: Outdoor
• Maximum Amperage: 125 A
• Mounting Type: Flush
• NEMA Configuration: NEMA 3R
• Number of Circuits: 24
• Number of Spaces: 12
• Weight: 20.5 lb
• Returnable: 90-Day
• Series Type: BR

Electrical Specifications:

• Voltage: 120/240 V

Warranty and Certifications:

• Certifications and Listings: UL Listed
• Manufacturer Warranty: 10-Year (per warranty statement)

Eaton BRP12L125R 125A LOADCENTER
