Performance and Efficiency

• Specifically Designed for SolarEdge Power Optimizers
• Wide Power Range: 3kW to 11.4kW to meet diverse system needs.
• High Efficiency: 99% weighted efficiency with 33%-50% less energy losses compared to market standards.
• Oversizing Capability: Supports up to 155% oversizing for increased system flexibility.
• High Reliability: Lower heat dissipation ensures long-term durability.

Installation and Commissioning

• Compact and Lightweight Design: Small form factor and easy-to-install hardware simplify setup.
• Faster Commissioning: Utilize the SolarEdge SetApp for quick setup via smartphone.

Warranty and Durability

• Standard 12-Year Warranty: Option to extend up to 20 or 25 years for enhanced peace of mind.
• NEMA 4X Enclosure: Suitable for both outdoor and indoor installations, providing excellent weather and dust protection.

Advanced Monitoring and Communication

• Built-in Module-Level Monitoring: Enables real-time system performance tracking.
• Internet Connectivity: Ethernet or wireless communication with optional ZigBee® or cellular plug-ins for seamless monitoring.

Safety Features

• Integrated Arc Fault Protection and Rapid Shutdown: Complies with NEC 2014 and 2017 standards (690.11 and 690.12) for enhanced safety.

Optional Features

• Built-in Consumption Metering: Ensures faster installations with 1% accuracy.
• Production Revenue Grade Metering: High precision (0.5% accuracy, ANSI C12.20) for energy production tracking.

Certifications

• UL1741 SA Certified: Fully compliant with CPUC Rule 21 grid requirements.

• Manufacturer: SolarEdge
• Category: Solar Inverters
• Catalog: SE10000H-US000BEI4
• Rated AC Power Output: 10000W
• Maximum DC Input Voltage: 480V
• CEC Weighted Efficiency: 99%
• Dimensions: 21.3 x 14.6 x 7.3 inches
• Weight: 38.8 lbs
• Operating Temperature Range: -25°C to +60°C
• Protection Rating: NEMA 4X (Switch Safety with Inverter)
• Warranty: 12 Year Warranty / Optional 25 Year Warranty

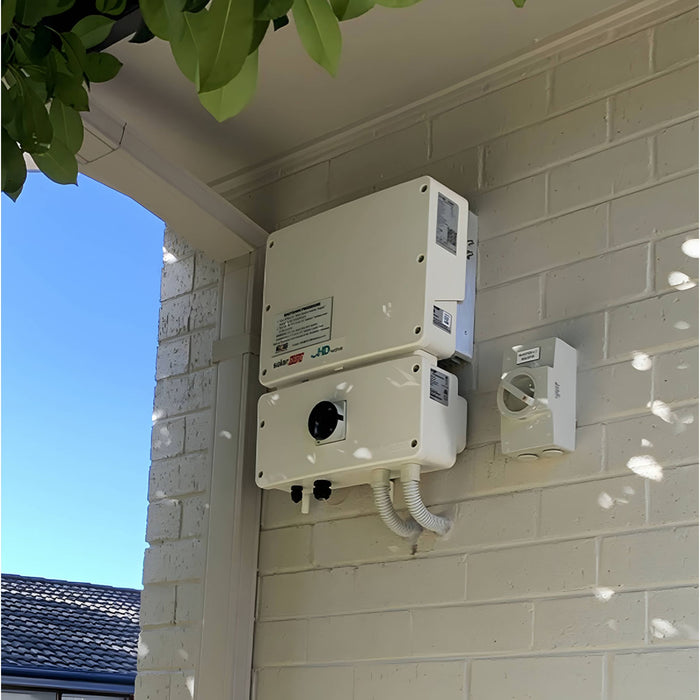

SolarEdge HD Wave 10kW Inverter
