Name: Enphase Q-12-17-240 Landscape Q-Cable
Brand: Enphase Energy
SKU: Q-12-17-240
Price: 20.46 USD
Availability: InStock

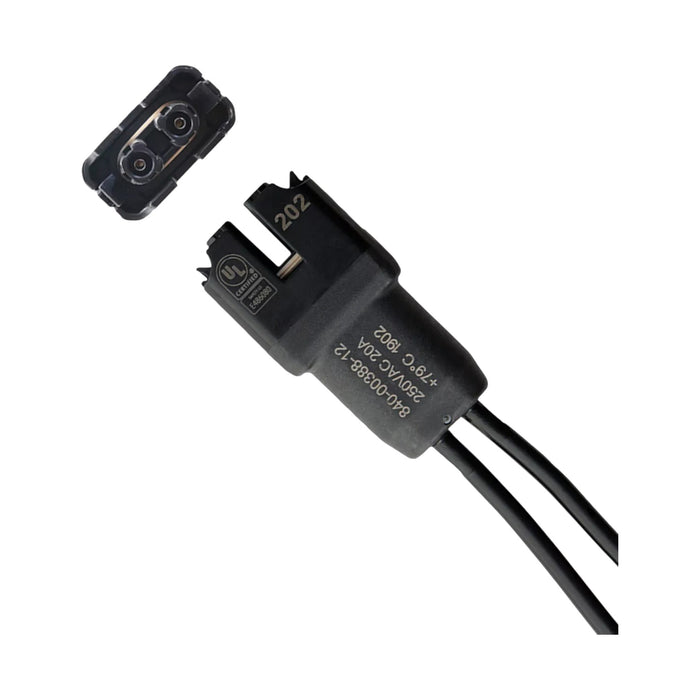

Enphase Q-12-17-240 Landscape Q-Cable

SKU Q-12-17-240

Save 18%

$24.90

$24.90 - $24.90

$24.90

$20.46

$20.46 - $20.46

$20.46

Availability:

In stock

The IQ Cable is a continuous length 12 AWG cable with pre-installed connectors for IQ Microinverters that support faster, simpler, and more reliable installations. The cable is handled like standard outdoor-rated electrical wire, allowing it to be cut, spliced, and extended as needed. It is used for landscape 60-cell PV modules.

Price is per connector.
Connectors are spaced 78.7 inches on center for 60-cell module landscape orientation.
Match the number of connectors to the number of IQ or IQ+ Microinverters to be installed.

Quantity

Standart Shipping

Estimated delivery time: 2-4 days

Key Features

The 2-wire cable is 50% lighter than the previous generation Enphase cable
New cable numbering simplifies wire management
Plug-and-play connectors speed up installation
Link connectors eliminate cable waste
UL Listed

Technical Specifications

Voltage Rating: 600 V (connector rating: 250 V)
Wire Size/Maximum Nominal Voltage: 12 AWG / 277 VAC
Connector Spacing: 6.5 ft (2.0 m)
PV Module Orientation: Landscape (60-cell)
Length: 6.5 ft connector spacing
Weight: 1.2 lbs per drop

What's in the Box?

1 drop of IQ Cable (landscape, 60-cell) with preinstalled IQ Connectors

Product Sheet

Enphase Landscape Cable
